Vishay
M43P104KB40
RESISTOR, TRIMMER, CERMET, 15 TURN(S), 0.75 W, 100000 ohm, 3/4 INCH, RECTANGULAR, 3 PINS, ROHS COMPLIANT
Resistance100kR
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay M43P104KB40 technical specifications.
General
Height
0.252inch
Lead Free
Lead Free
Length
0.748inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
750mW
Mount
PCB, Through Hole
Number of Turns
15
Package Quantity
200
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
100kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
43
Taper
Linear
Technology
CERMET
Termination
PC Pin
Tolerance
10%
Voltage Rating (AC)
250V
Width
0.185inch
Compliance
RoHS
Compliant
Datasheet
Vishay M43P104KB40 Datasheet
Download the complete datasheet for Vishay M43P104KB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

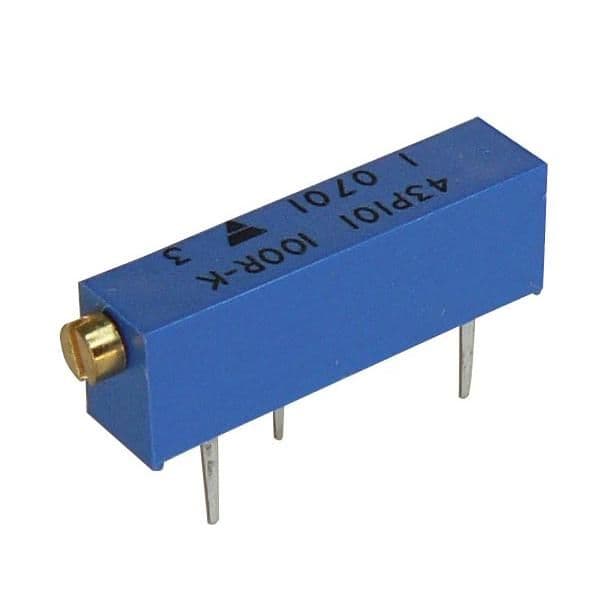

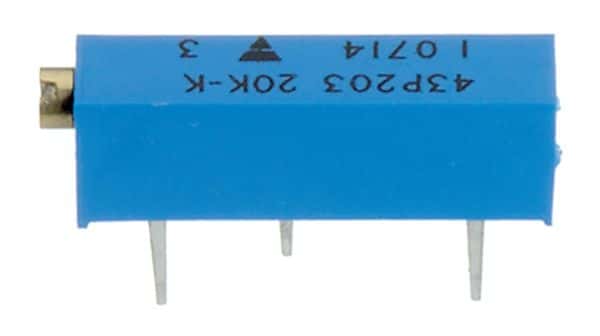

Product Images
