Cermet trimmer resistor, 5kR resistance with 10% tolerance, rated for 0.5W power dissipation. Features 21 turns and a linear taper for precise adjustment. Designed for PCB through-hole mounting with PC pin terminations. Operates across a wide temperature range from -55°C to 155°C and has a 300V AC voltage rating. RoHS compliant and lead-free.
Resistance5kR
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay M64W502KB40 technical specifications.
General
Height
0.386inch
Lead Free
Lead Free
Length
0.382inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
PCB, Through Hole
Number of Turns
21
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
5kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
64
Taper
Linear
Technology
CERMET
Termination
PC Pin
Tolerance
10%
Voltage Rating (AC)
300V
Weight
1.2g
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
Vishay M64W502KB40 Datasheet
Download the complete datasheet for Vishay M64W502KB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

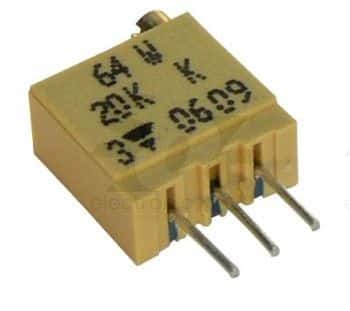

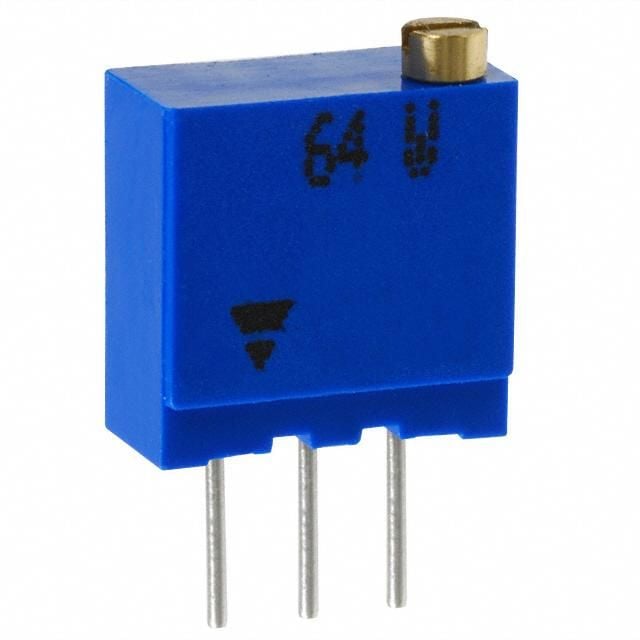

Product Images
