Cermet trimmer resistor, 1kΩ resistance with 10% tolerance, rated for 0.5W power dissipation. Features 21 turns for precise adjustment, a linear taper, and PCB through-hole mounting with pin terminations. Operates across a wide temperature range from -55°C to 155°C and has a 300V AC voltage rating. This RoHS compliant component is housed in a square, 3/8 inch package.
Resistance1kR
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Vishay M64Y102KB40 technical specifications.
General
Depth
5mm
Height
0.386inch
Lead Free
Lead Free
Length
9.7mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
PCB, Through Hole
Number of Turns
21
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
64
Taper
Linear
Technology
CERMET
Termination
Pin
Tolerance
10%
Voltage Rating (AC)
300V
Weight
0.5g
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
Vishay M64Y102KB40 Datasheet
Download the complete datasheet for Vishay M64Y102KB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

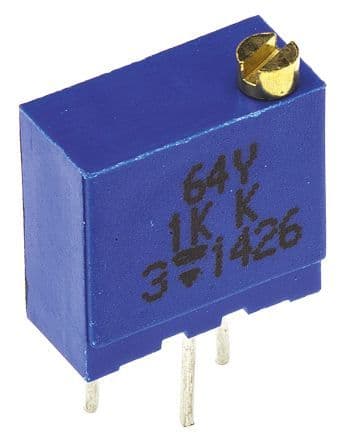

Product Images
