The MCL4448-TR3 is a general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 75V and a maximum surge current of 2A. The diode is surface mountable and is packaged in a hermetically sealed, glass, micromelf-2 package. It is halogen free and ROHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay MCL4448-TR3 technical specifications.
General
| Average Rectified Current | 200mA |
| Forward Current | 200mA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Leakage Current | 5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 2A |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Radiation Hardening | No |
| Reverse Recovery Time | 8ns |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MCL4448-TR3 Datasheet
Download the complete datasheet for Vishay MCL4448-TR3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

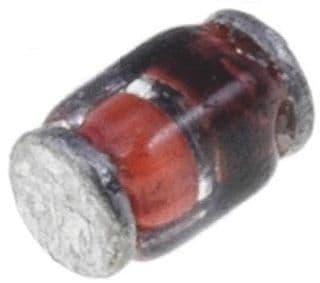

Product Images
