Surface mount chip fuse, 3A current rating, 32VDC voltage rating, and 50A interrupt rating. Features a fast-acting blow characteristic and a low DC cold resistance of 32mR. Constructed with a ceramic body in a 0603 (1608 metric) case size, suitable for PCB mounting via tape and reel packaging. Operates within a temperature range of -15°C to 125°C and is RoHS compliant.
Package0603
Resistance32mR
Voltage Rating32V
Current Rating3A
Quick Jump:
Technical Specifications
Vishay MFU0603FF03000P100 technical specifications.
General
Approvals
UL
Body Material
Ceramic
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
3A
DC Cold Resistance
32mR
Fuse Current
3A
Height
0.018inch
Lead Free
Lead Free
Length
1.55mm
Max Operating Temperature
125°C
Min Operating Temperature
15°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Primary Type
Chip
Reach SVHC Compliant
No
Resistance
32mR
RoHS Compliant
Yes
Series
MFU
Termination
SMD/SMT
Thickness
450um
Voltage Rating
32V
DC Rated Voltage
32V
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Vishay MFU0603FF03000P100 Datasheet
Download the complete datasheet for Vishay MFU0603FF03000P100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

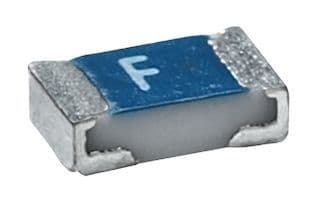

Product Images
