Technical Specifications
Vishay MRS25000C1004FCT00 technical specifications.
General
| Package/Case | Axial |
| Contact Plating | Tin |
| Diameter | 2.5mm |
| Lead Free | Lead Free |
| Lead Length | 26mm |
| Length | 6.5mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Number of Terminations | 2 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 1MR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | MRS25 |
| Technology | THIN FILM |
| Termination | Axial |
| Tolerance | 1% |
| Voltage Rating | 350V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay MRS25000C1004FCT00 Datasheet
Download the complete datasheet for Vishay MRS25000C1004FCT00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

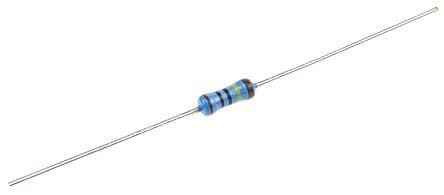

Product Images
