Vishay
NTCLE100E3472JB0
RESISTOR, TEMPERATURE DEPENDENT, NTC, 4700 ohm, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT
Resistance4.7R
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay NTCLE100E3472JB0 technical specifications.
General
Accuracy
0.75%
Depth
3mm
Height
9mm
Lead Diameter
0.6mm
Lead Length
17mm
Lead Pitch
2.54mm
Length
3.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
500mW
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
4.7R
Resistance Tolerance
5%
RoHS Compliant
Yes
Series
2381
Termination
Radial
Tolerance
5%
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay NTCLE100E3472JB0 Datasheet
Download the complete datasheet for Vishay NTCLE100E3472JB0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

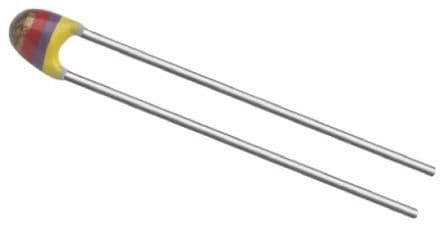

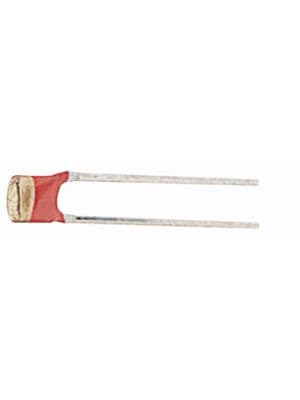

Product Images
