10k Ohm cermet potentiometer with a 1W power rating and 20% resistance tolerance. This 1-turn, linear taper potentiometer features a knob-type actuator and panel mount design. Operating across a temperature range of -40°C to 85°C, it offers a 100V DC rated voltage and IP67 ingress protection.
Resistance10kR
Voltage Rating100V
MountingPanel
PowerYes
Quick Jump:
Technical Specifications
Vishay P16NP103MAB15 technical specifications.
General
Actuator Type
KNOB TYPE
Diameter
16mm
Height
24.5mm
Length
16mm
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Mount
Panel
Number of Gangs
1
Number of Turns
1
Package Quantity
20
Packaging
Bulk
Power
Yes
Radiation Hardening
No
Ratings
IP67
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
20%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
P16
Taper
Linear
Technology
CERMET
Termination
Solder
Tolerance
20%
Type
Potentiometer
Voltage Rating
100V
DC Rated Voltage
100V
Weight
0.158733oz
Compliance
RoHS
Compliant
Datasheet
Vishay P16NP103MAB15 Datasheet
Download the complete datasheet for Vishay P16NP103MAB15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

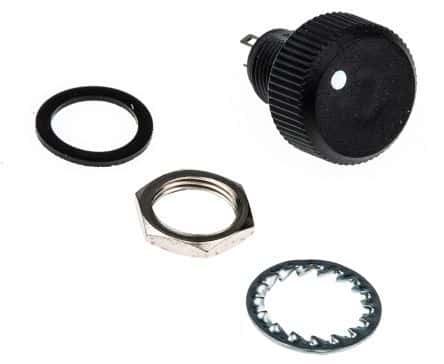

Product Images
