Metal film resistor with 100kΩ resistance and 5% tolerance. Features 1W power dissipation, 350V DC rated voltage, and axial leaded termination for through-hole mounting. Operates across a wide temperature range from -55°C to 155°C. Conformal package with tin contact plating. Automotive AEC-Q200 qualified and RoHS compliant.
PackageConformal
Resistance100kR
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay PR01000101003JA100 technical specifications.
General
Package/Case
Conformal
Contact Plating
Tin
Diameter
2.5mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Number of Terminations
2
Operating Supply Voltage
350V
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR01
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
350V
DC Rated Voltage
350V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR01000101003JA100 Datasheet
Download the complete datasheet for Vishay PR01000101003JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

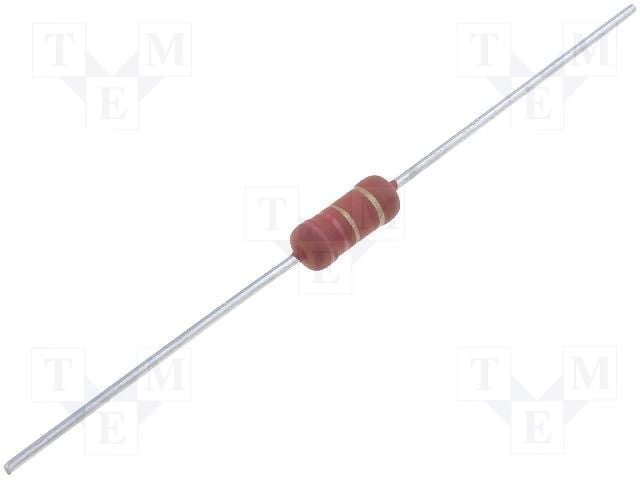

Product Images
