1W metal film fixed resistor with 150kR resistance and 5% tolerance. Features axial leaded, through-hole mounting with a 2.5mm diameter and 8mm length. Operates across a -55°C to 155°C temperature range with a 350V DC rated voltage. Includes flame retardant coating and automotive AEC-Q200 compliance. RoHS compliant with tin contact plating.
PackageAxial
Resistance150kR
Voltage Rating350V
Quick Jump:
Technical Specifications
Vishay PR01000101503JR500 technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
2.5mm
Features
Flame Retardant Coating, Automotive AEC-Q200
Lead Diameter
0.58mm
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Number of Terminations
2
Operating Supply Voltage
350V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
150kR
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR01
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
350V
DC Rated Voltage
350V
Weight
0.007478oz
Width
2.5mm
Wire/Cable Diameter
0.05mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR01000101503JR500 Datasheet
Download the complete datasheet for Vishay PR01000101503JR500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

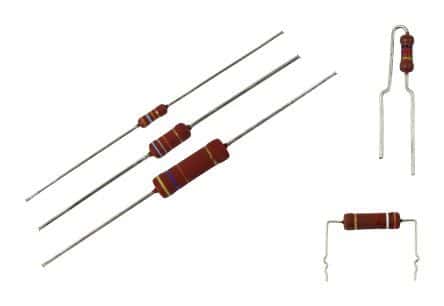

Product Images
