Vishay
PR01000104708JA100
RESISTOR, METAL FILM, 1 W, 5 %, 250 ppm, 4.7 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT
PackageConformal
Resistance4.7R
Voltage Rating350V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay PR01000104708JA100 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
2.5mm
Lead Free
Lead Free
Length
8mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Operating Supply Voltage
350V
Reach SVHC Compliant
No
Resistance
4.7R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR01
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
350V
DC Rated Voltage
350V
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR01000104708JA100 Datasheet
Download the complete datasheet for Vishay PR01000104708JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

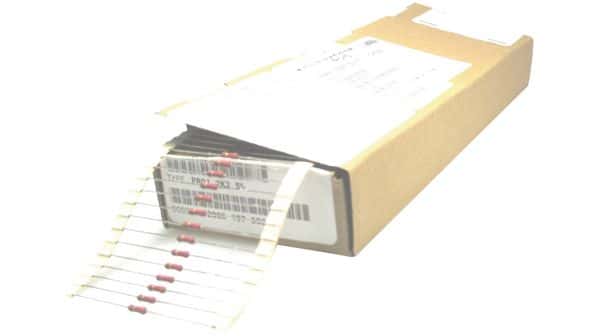

Product Images
