Technical Specifications

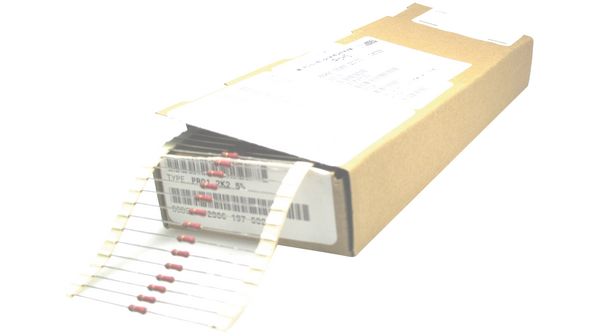

Vishay PR01000107509JA100 technical specifications.
General
| Package/Case | Conformal |
| Contact Plating | Tin |
| Diameter | 2.5mm |
| Features | Flame Retardant Coating, Automotive AEC-Q200 |
| Lead Free | Lead Free |
| Length | 8mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Terminations | 2 |
| Operating Supply Voltage | 350V |
| Resistance | 75R |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | PR01 |
| Technology | METAL FILM |
| Termination | Axial |
| Tolerance | 5% |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay PR01000107509JA100 Datasheet
Download the complete datasheet for Vishay PR01000107509JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
