Metal film resistor with 1 ohm resistance and 5% tolerance. Features 2W power rating, 250 ppm temperature coefficient, and 500V DC rated voltage. Cylindrical, axial leaded construction with tin contact plating, measuring 3.9mm diameter and 12mm length. Operates within a -55°C to 155°C temperature range and is RoHS compliant.
PackageConformal
Resistance1R
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay PR02000201008JA100 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
3.9mm
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Operating Supply Voltage
500V

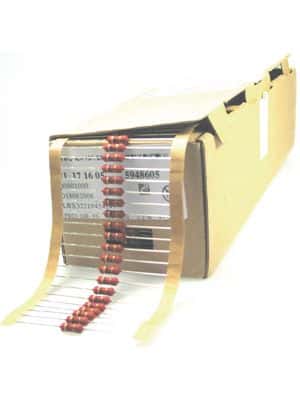

Packaging
Ammo Pack
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000201008JA100 Datasheet
Download the complete datasheet for Vishay PR02000201008JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

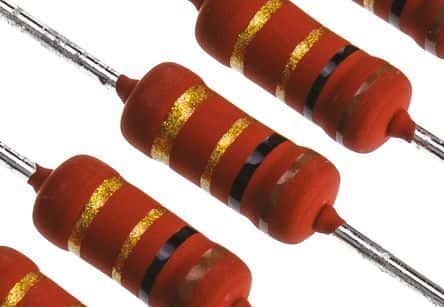

Product Images
