Metal film resistor with 330 ohm resistance and 5% tolerance. Features 2W maximum power dissipation, 500V DC rated voltage, and axial terminations. Operating temperature range from -55°C to 155°C. Conformal package with tin contact plating, 3.9mm diameter, and 12mm length. Automotive AEC-Q200 qualified and RoHS compliant.
PackageConformal
Resistance330R
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay PR02000203300JA100 technical specifications.
General
Package/Case
Conformal
Contact Plating
Tin
Diameter
3.9mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Number of Terminations
2
Operating Supply Voltage
500V
Packaging
Cut Tape
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
330R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000203300JA100 Datasheet
Download the complete datasheet for Vishay PR02000203300JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

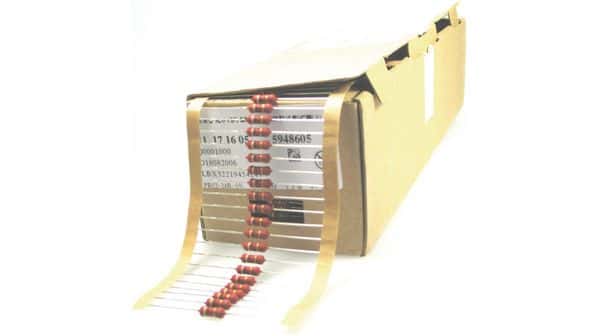

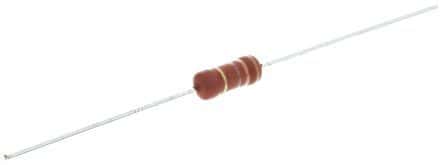

Product Images
