PackageConformal
Resistance330mR
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay PR02000203307JA100 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
3.9mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.2W
Military Standard
Not
Mount
Through Hole
Number of Terminations
2
Operating Supply Voltage
500V
Resistance
330mR
RoHS Compliant
Yes
Series
PR02
Termination
Axial
Tolerance
5%
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000203307JA100 Datasheet
Download the complete datasheet for Vishay PR02000203307JA100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

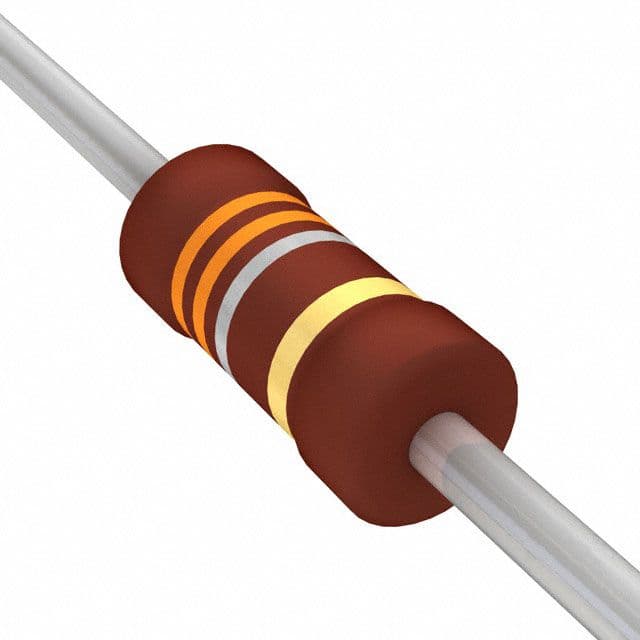

Product Images
