2W metal film fixed resistor with 5% tolerance and 250 ppm temperature coefficient. Features 3.9 ohm resistance, 500V DC rated voltage, and axial leaded, through-hole mounting. Operating temperature range from -55°C to 155°C. Includes flame retardant coating and automotive AEC-Q200 qualification. RoHS compliant.
PackageAxial
Resistance3.9R
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay PR02000203908JR500 technical specifications.
General
Package/Case
Axial
Diameter
3.9mm
Features
Flame Retardant Coating, Automotive AEC-Q200
Lead Diameter
0.58mm
Lead Free
Lead Free
Length
0.394inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Number of Terminations
2
Operating Supply Voltage
500V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
3.9R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Weight
0.017637oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000203908JR500 Datasheet
Download the complete datasheet for Vishay PR02000203908JR500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

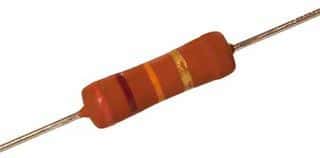

Product Images
