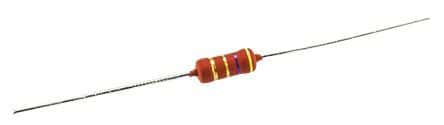

Metal film resistor with 4.7 ohm resistance and 5% tolerance. Features 2W power dissipation, 500V operating voltage, and axial leaded termination. Operates across a -55°C to 155°C temperature range. Conformal coated, cylindrical construction with tin contact plating. Automotive AEC-Q200 qualified and RoHS compliant.
PackageConformal
Resistance4.7R
Voltage Rating500V
Quick Jump:
Technical Specifications
Vishay PR02000204708JA100 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
3.9mm
Features
Automotive AEC-Q200
Lead Free
Lead Free
Length
12mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Military Standard
Not
Number of Terminations
2
Operating Supply Voltage
500V
Reach SVHC Compliant
No
Resistance
4.7R
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR02
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
500V
DC Rated Voltage
500V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR02000204708JA100 Datasheet
Download the complete datasheet for Vishay PR02000204708JA100 to view detailed technical specifications.
