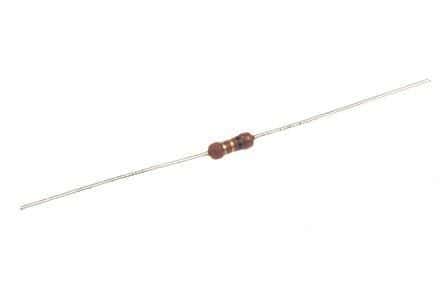

Axial metal film resistor with 1.5kΩ resistance and 5% tolerance. Features a 750VDC rating, 3W power dissipation, and operates from -55°C to 155°C. Conformal package with tin plating, 5.2mm diameter, and 19.5mm length. Includes flame retardant coating and lead-free construction.
PackageConformal
Resistance1.5kR
Voltage Rating750V
Quick Jump:
Technical Specifications
Vishay PR03000201501JAC00 technical specifications.
General
Package/Case
Conformal
Contact Plating
Tin
Diameter
5.2mm
Features
Flame Retardant Coating
Lead Diameter
0.78mm
Lead Free
Lead Free
Length
19.5mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Number of Terminations
2
Operating Supply Voltage
750V
Package Quantity
1
Packaging
Cut Tape
Reach SVHC Compliant
Unknown
Resistance
1.5kR
Resistance Tolerance
5%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR03
Technology
METAL FILM
Termination
Axial
Tolerance
5%
Voltage Rating
750V
DC Rated Voltage
750V
Width
5.2mm
Compliance
RoHS
Compliant
