Axial metal film resistor with 430 Ohms resistance and 5% tolerance. Features a 750V operating supply voltage and 3W maximum power dissipation. Constructed with tin contact plating and a flame retardant coating, this through-hole component operates from -55°C to 155°C. Lead diameter is 0.78mm, with a body measuring 5.2mm in diameter and 0.657 inches in length.
PackageAxial
Resistance430R
Voltage Rating750V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay PR03000204300JAC00 technical specifications.
General
Package/Case
Axial
Contact Plating
Tin
Diameter
5.2mm
Features
Flame Retardant Coating
Lead Diameter
0.78mm
Lead Free
Lead Free
Length
0.657inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Mount
Through Hole
Number of Terminations
2
Operating Supply Voltage
750V
Package Quantity
500
Packaging
Tape and Reel
Resistance
430R
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
PR03
Termination
Axial
Tolerance
5%
Voltage Rating
750V
Weight
0.038801oz
Width
5.2mm
Compliance
RoHS
Compliant
Datasheet
Vishay PR03000204300JAC00 Datasheet
Download the complete datasheet for Vishay PR03000204300JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

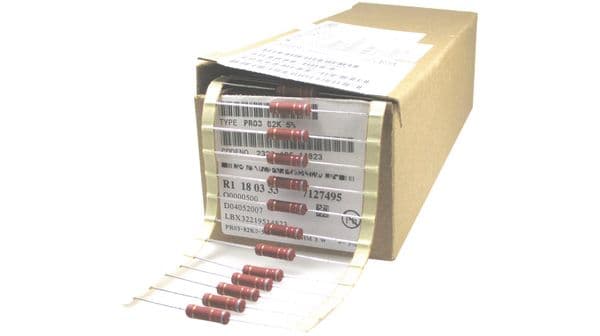

Product Images
