Axial metal film resistor with 56 Ohms resistance and 5% tolerance. Features 750V DC rated voltage, 3W max power dissipation, and a wide operating temperature range of -55°C to 155°C. Conformal package with cylindrical construction, tin contact plating, and 0.78mm lead diameter. Includes flame retardant coating and is RoHS compliant.
PackageConformal
Resistance56R
Voltage Rating750V
Quick Jump:
Technical Specifications
Vishay PR03000205609JAC00 technical specifications.
General
| Package/Case | Conformal |
| Construction | Cylindrical |
| Contact Plating | Tin |
| Diameter | 5.2mm |
| Features | Flame Retardant Coating |
| Lead Diameter | 0.78mm |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3W |
| Number of Terminations | 2 |
| Operating Supply Voltage | 750V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 56R |
| Resistance Tolerance | 5% |
| Resistor Type | Metal Film |
| RoHS Compliant | Yes |
| Series | PR03 |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 750V |
| DC Rated Voltage | 750V |
| Width | 5.2mm |
| Wire/Cable Diameter | 0.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay PR03000205609JAC00 Datasheet
Download the complete datasheet for Vishay PR03000205609JAC00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

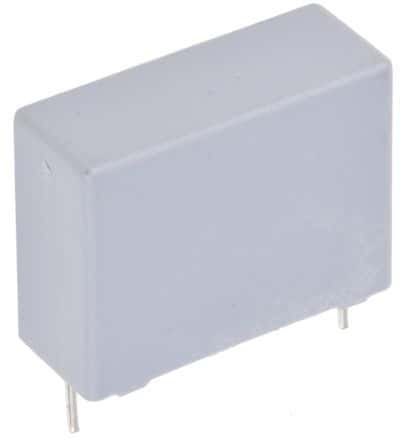

Product Images
