Technical Specifications
Vishay RH025200R0FC02 technical specifications.
General
| Features | Moisture Resistant |
| Height | 13.87mm |
| Lead Free | Lead Free |
| Lead/Base Style | Solder |
| Length | 26.97mm |
| Max Operating Temperature | 250°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 25W |
| Military Standard | Not |
| Mount | Flanges |
| Package Quantity | 5 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 200R |
| Resistance Tolerance | 1% |
| Resistor Type | Wirewound |
| RoHS Compliant | No |
| Series | RH |
| Termination | Solder |
| Tolerance | 1% |
| DC Rated Voltage | 70.7V |
| Width | 27.43mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay RH025200R0FC02 Datasheet
Download the complete datasheet for Vishay RH025200R0FC02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

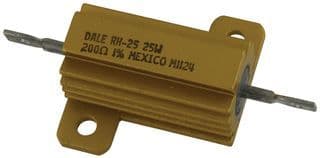

Product Images
