Surface mount switching diode with 1A average rectified current and 400V repetitive reverse voltage. Features a low 12pF capacitance, 1.8µs reverse recovery time, and a maximum forward surge current of 40A. Operates across a wide temperature range from -55°C to 150°C. Packaged in a compact SMA case, this lead-free and RoHS compliant component is supplied on tape and reel.
PackageSMA
Capacitance12pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay S1G-E3/61T technical specifications.
General
Average Rectified Current
1A
Capacitance
12pF
Package/Case
SMA
Current Rating
1A
Forward Current
1A
Height
2.29mm
Lead Free
Lead Free
Length
4.5mm
Max Forward Surge Current (Ifsm)
40A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
1uA
Max Reverse Voltage (DC)
400V
Max Surge Current
40A
Mount
Surface Mount
Output Current
1A
Package Quantity
1800
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
40A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Recovery Time
1.8us
Reverse Voltage
400V
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Vishay S1G-E3/61T Datasheet
Download the complete datasheet for Vishay S1G-E3/61T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

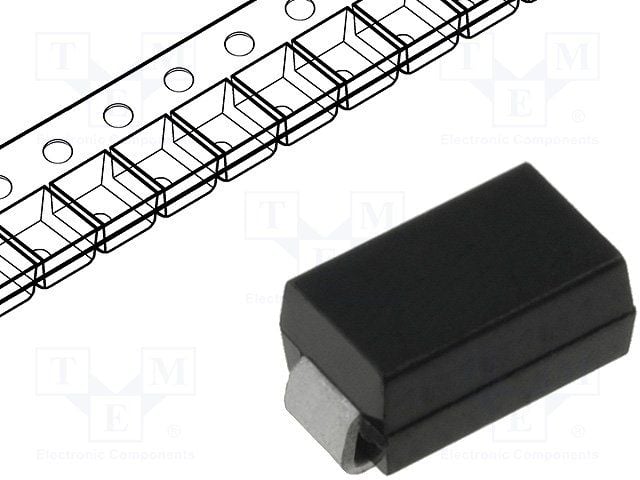

Product Images
