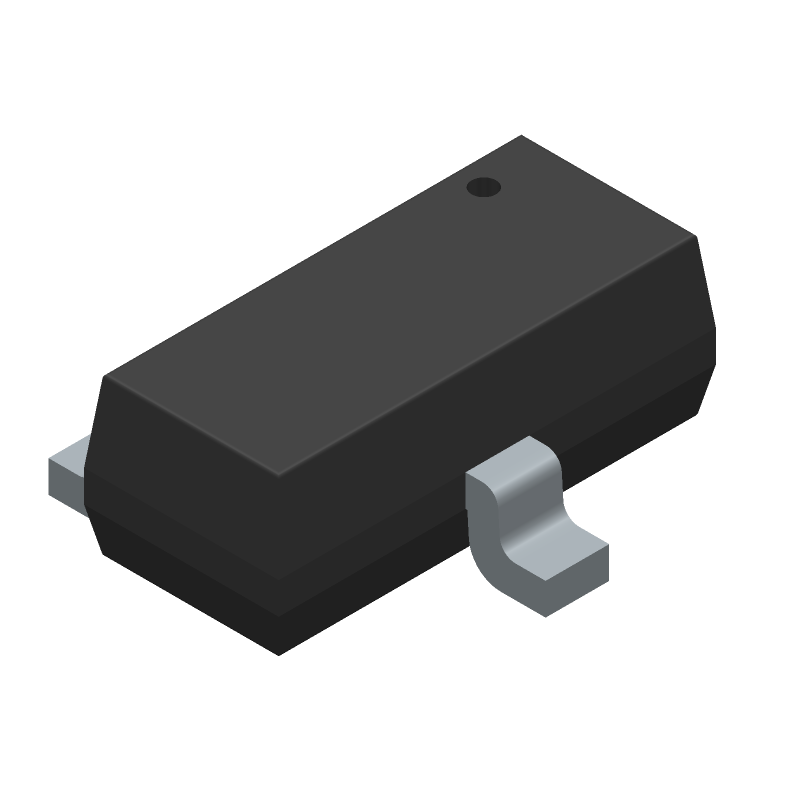

P-channel, silicon, Metal-oxide Semiconductor Field-Effect Transistor (MOSFET) designed for small signal applications. Features a maximum drain current of 5.9A and a drain-source voltage rating of 30V. Operates across a wide temperature range from -55°C to 150°C. Housed in a 3-terminal TO-236 package, this single-element device is HALOGEN FREE and ROHS COMPLIANT.
Quick Jump:
Technical Specifications
Vishay SI2343CDS-T1-GE3 technical specifications.
General
| Max Operating Temperature | 150 |
| Number of Terminals | 3 |
| Min Operating Temperature | -55 |
| Terminal Position | DUAL |
| JEDEC Package Code | TO-236 |
| Pin Count | 3 |
| Number of Elements | 1 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8541.29.00.95 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Vishay SI2343CDS-T1-GE3 Datasheet
Download the complete datasheet for Vishay SI2343CDS-T1-GE3 to view detailed technical specifications.
No datasheet is available for this part.
