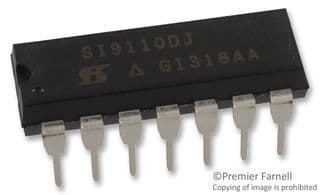

Multi-topology DC/DC controller and regulator IC designed for through-hole mounting in a PDIP package. Features a maximum switching frequency of 3MHz, a 50% duty cycle, and a maximum output current of 10mA with a 9.7V output voltage. Operates within a supply voltage range of 9.5V to 13.5V and has a power dissipation of 750mW. Supports Flyback, Push-Pull, and Cuk topologies, with a fall time of 40ns. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SI9110DJ-E3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay SI9110DJ-E3 technical specifications.
| Package/Case | PDIP |
| Duty Cycle | 50% |
| Fall Time | 40ns |
| Height | 3.81mm |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Max Duty Cycle | 50% |
| Max Frequency | 3MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 150uA |
| Max Supply Voltage | 13.5V |
| Min Supply Voltage | 9.5V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 10mA |
| Output Voltage | 9.7V |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 750mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 3MHz |
| Topology | Flyback, Push-Pull, Cuk |
| Weight | 0.057144oz |
| Width | 7.11mm |
| RoHS | Compliant |
