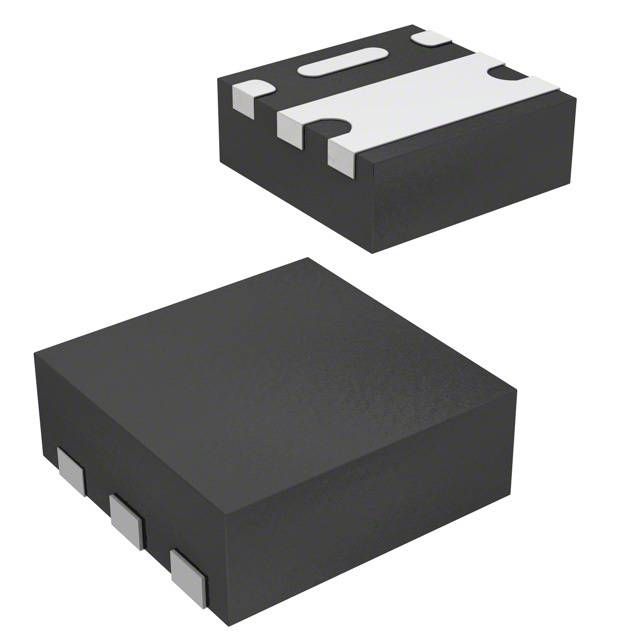

N-channel power MOSFET featuring 150V drain-source voltage and 7.7A continuous drain current. Offers a low 177mΩ maximum drain-source on-resistance. Designed for surface mount applications with a compact SC-70 package, measuring 2.05mm x 2.05mm x 0.75mm. Includes fast switching characteristics with a 5ns turn-on delay and 10ns fall time. Operates across a wide temperature range from -55°C to 150°C with a maximum power dissipation of 19W.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay SIA446DJ-T1-GE3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 7.7A |
| Drain to Source Resistance | 165mR |
| Drain to Source Voltage (Vdss) | 150V |
| Fall Time | 10ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 0.75mm |
| Input Capacitance | 230pF |
| Length | 2.05mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 19W |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Rds On Max | 177mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ThunderFET® |
| Threshold Voltage | 3.5V |
| Turn-Off Delay Time | 10ns |
| Turn-On Delay Time | 5ns |
| Width | 2.05mm |
| RoHS | Compliant |
