Technical Specifications
Vishay SIE848DF-T1-GE3 technical specifications.
General
| Continuous Drain Current (ID) | 60A |
| Drain to Source Resistance | 1.6mR |
| Drain to Source Voltage (Vdss) | 30V |
| Fall Time | 40ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 6.1nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Max Power Dissipation | 125W |
| Mount | Surface Mount |
| Nominal Vgs | 1.8V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| Rds On Max | 1.6mR |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TrenchFET® |
| Threshold Voltage | 1.8V |
| Turn-Off Delay Time | 70ns |
| Turn-On Delay Time | 45ns |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SIE848DF-T1-GE3 Datasheet
Download the complete datasheet for Vishay SIE848DF-T1-GE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

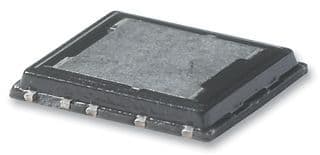

Product Images
