PackageTSOT
MountingSurface Mount
Power833mW
Quick Jump:
Technical Specifications
Vishay SIP32508DT-T1-GE3 technical specifications.
General
Package/Case
TSOT
Fault Protection
Reverse Current
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Power Dissipation
833mW
Max Supply Voltage
5.5V
Min Supply Voltage
1.1V
Mount
Surface Mount
Number of Outputs
1
On-State Resistance
47mR
Output Configuration
High Side
Output Current
3A
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
833mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay SIP32508DT-T1-GE3 Datasheet
Download the complete datasheet for Vishay SIP32508DT-T1-GE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

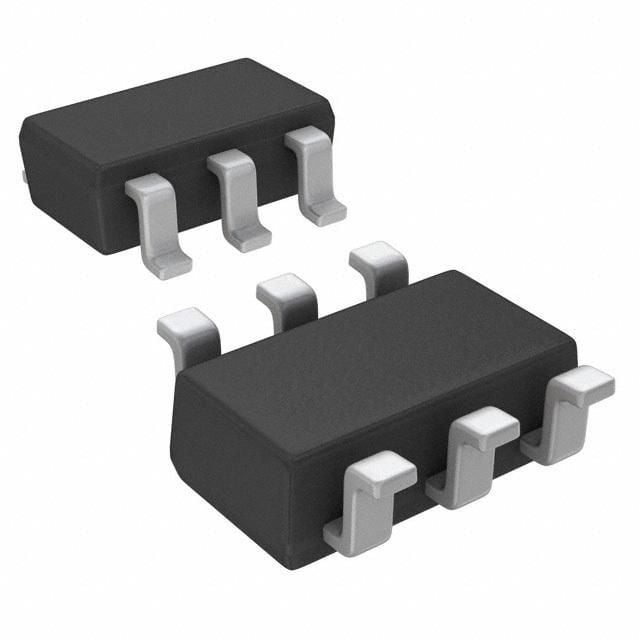

Product Images
