Unidirectional Transient Voltage Suppressor (TVS) diode designed for voltage protection. Features a 30V DC rated voltage and 400W peak pulse power dissipation. Offers a 33.3V minimum breakdown voltage and 48.4V maximum clamping voltage. Encased in an SMA package with SMD/SMT termination, this RoHS compliant component operates from -55°C to 150°C.
PackageSMA
PolarityUnidirectional
Power400W
Quick Jump:
Technical Specifications
Vishay SMAJ30A-E3/61 technical specifications.
General
Package/Case
SMA
Clamping Voltage
48.4V
Clamping Voltage-Max
48.4V
Diode Type
ZENER
Direction
Unidirectional
Height
2.09mm
Lead Free
Lead Free
Leakage Current
1uA
Length
4.5mm
Max Breakdown Voltage
36.8V
Min Breakdown Voltage
33.3V
Max Forward Surge Current (Ifsm)
40A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
400W
Max Reverse Leakage Current
1uA
Max Surge Current
8.3A
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
30V
Package Quantity
1800
Packaging
Tape and Reel
Peak Pulse Current
8.3A
Peak Pulse Power
400W
Polarity
Unidirectional
Power Dissipation
400W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
33.3V
Reverse Standoff Voltage
30V
RoHS Compliant
Yes
Series
TransZorb®
Termination
SMD/SMT
DC Rated Voltage
30V
Width
2.79mm
Compliance
RoHS
Compliant
Datasheet
Vishay SMAJ30A-E3/61 Datasheet
Download the complete datasheet for Vishay SMAJ30A-E3/61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

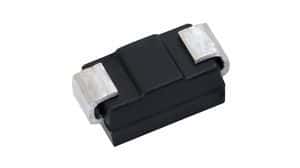

Product Images
