Surface mount Zener diode with a 12V working voltage and 5% tolerance. Features 1W power dissipation, 9 Ohm impedance, and a maximum reverse leakage current of 5uA. Packaged in an SMA case with dimensions of 4.5mm length, 2.79mm width, and 2.29mm height. Operates within a temperature range of -65°C to 150°C and is RoHS compliant.
PackageSMA
Voltage Rating12V
MountingSurface Mount
Power1W
Quick Jump:
Technical Specifications
Vishay SML4742A-E3/61 technical specifications.
General
Package/Case
SMA
Height
2.29mm
Impedance
9R
Lead Free
Lead Free
Length
4.5mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
1W
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Mount
Surface Mount
Package Quantity
1800
Packaging
Tape and Reel
Power Dissipation
1W
Radiation Hardening
No
RoHS Compliant
Yes
Tolerance
5%
Voltage Tolerance
5%
Width
2.79mm
Working Voltage
12V
Zener Current
21mA
Zener Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Vishay SML4742A-E3/61 Datasheet
Download the complete datasheet for Vishay SML4742A-E3/61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

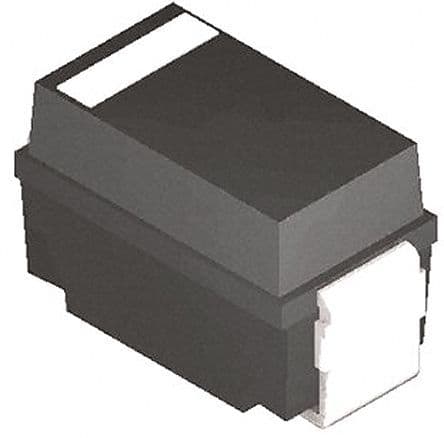

Product Images
