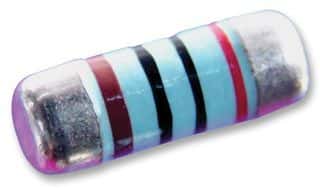

Surface mount metal film resistor, 0.25W power rating, 4.99kΩ resistance with 1% tolerance. Features 50 ppm temperature coefficient, 200V voltage rating, and operates from -55°C to 125°C. Constructed with tin contact plating, it offers automotive AEC-Q200 compliance and anti-sulfur properties. Packaged in tape and reel, this RoHS compliant component is suitable for demanding applications.
PackageConformal
Resistance4.99kR
Voltage Rating200V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SMM02040C4991FB300 technical specifications.
General
Package/Case
Conformal
Construction
Cylindrical
Contact Plating
Tin
Diameter
1.4mm
Features
Automotive AEC-Q200, Anti-Sulfur
Lead Free
Lead Free
Length
3.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Terminations
2
Package Quantity
10000
Packaging
Tape and Reel
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
4.99kR
Resistance Tolerance
1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
SMM0204
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Vishay SMM02040C4991FB300 Datasheet
Download the complete datasheet for Vishay SMM02040C4991FB300 to view detailed technical specifications.
