Surface mount rectifier diode with 10A average rectified current and 100V maximum repetitive reverse voltage. Features a 10A forward current, 200A peak non-repetitive surge current, and a maximum operating temperature of 175°C. Packaged in a TO-277A (SMPC) plastic case, this RoHS compliant component is supplied on tape and reel.
PackageTO-277A
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SS10PH10-M3/86A technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-277A
Forward Current
10A
Height
0.031inch
Lead Free
Lead Free
Length
0.242inch
Max Forward Surge Current (Ifsm)
200A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
10uA
Max Reverse Leakage Current
10uA
Max Reverse Voltage (DC)
100V
Max Surge Current
200A
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
200A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
eSMP®
Width
0.171inch
Compliance
RoHS
Compliant
Datasheet
Vishay SS10PH10-M3/86A Datasheet
Download the complete datasheet for Vishay SS10PH10-M3/86A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

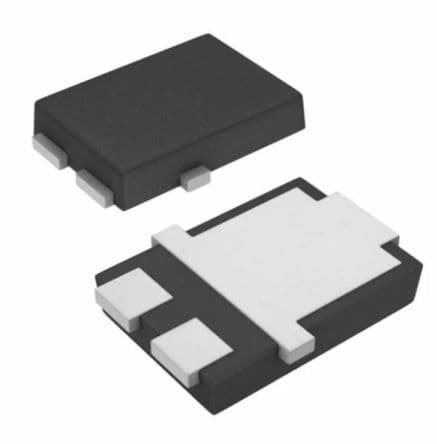

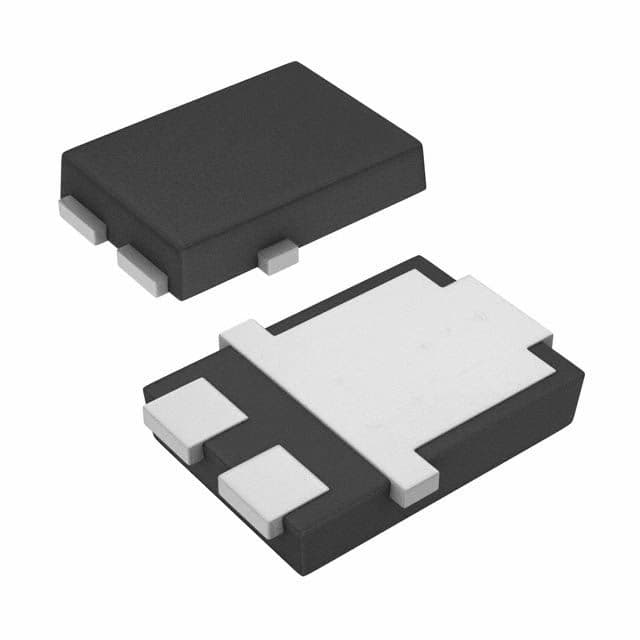

Product Images
