PackageDO-220AA
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SS2PH10-E3/84A technical specifications.
General
Average Rectified Current
2A
Package/Case
DO-220AA
Forward Current
2A
Height
1.15mm
Length
3.61mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
1uA
Max Reverse Leakage Current
1uA
Max Reverse Voltage (DC)
100V
Max Surge Current
50A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
eSMP®
Width
2.18mm
Compliance
RoHS
Compliant
Datasheet
Vishay SS2PH10-E3/84A Datasheet
Download the complete datasheet for Vishay SS2PH10-E3/84A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

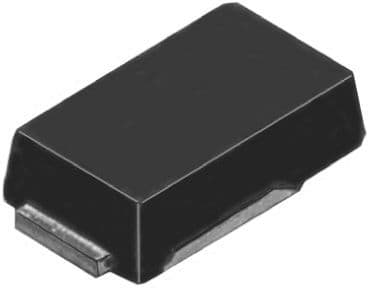

Product Images
