Surface mount rectifier diode with a 3A average rectified current and a 40V maximum repetitive reverse voltage. Features a 100A peak non-repetitive surge current capability and operates across a temperature range of -55°C to 125°C. This silicon rectifier diode is housed in an SMC package, measuring 7.11mm in length, 6.22mm in width, and 2.417mm in height. It offers a maximum reverse leakage current of 500µA.
PackageSMC
Voltage40V
Current3A
Current Rating3A
Quick Jump:
Technical Specifications
Vishay SS34-E3/57T technical specifications.
General
Average Rectified Current
3A
Package/Case
SMC
Current
3A
Current Rating
3A
Forward Current
3A
Height
2.417mm
Lead Free
Lead Free
Length
7.11mm
Max Forward Surge Current (Ifsm)
100A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
500uA
Max Reverse Leakage Current
500uA
Max Reverse Voltage (DC)
40V
Max Surge Current
100A
Mount
Surface Mount
Output Current
3A
Package Quantity
850
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
100A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Voltage
40V
DC Rated Voltage
40V
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Vishay SS34-E3/57T Datasheet
Download the complete datasheet for Vishay SS34-E3/57T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

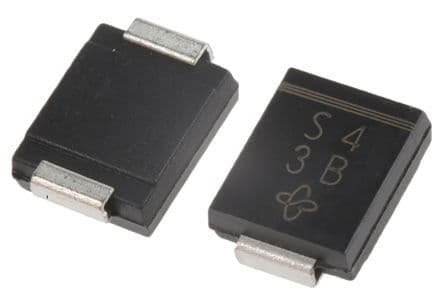

Product Images
