Vishay
SS3P4-M3/84A
DIODE 3 A, 40 V, SILICON, RECTIFIER DIODE, DO-220AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMP, 2 PIN, Rectifier Diode
PackageDO-220AA
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay SS3P4-M3/84A technical specifications.
General
Average Rectified Current
3A
Package/Case
DO-220AA
Forward Current
3A
Height
1.15mm
Lead Free
Lead Free
Length
3.61mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
150uA
Max Reverse Voltage (DC)
40V
Max Surge Current
50A
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
eSMP™
Width
2.18mm
Compliance
RoHS
Compliant
Datasheet
Vishay SS3P4-M3/84A Datasheet
Download the complete datasheet for Vishay SS3P4-M3/84A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

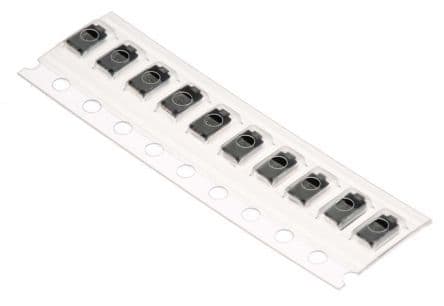

Product Images
