Vishay
T83C225K050EZZL
Cap Tant Solid 2.2uF 50V C CASE 10% (6 X 3.2 X 2.5mm) Inward L SMD 6032-28 1.5 Ohm 125°C Medical T/R
Package2312
Capacitance2.2uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay T83C225K050EZZL technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2312
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1.5R
Height - Seated (Max)
0.11inch
Leakage Current
1.1uA
Length
0.236inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Ratings
COTS
RoHS Compliant
No
Series
TANTAMOUNT® T83
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
50V
DC Rated Voltage
50V
Weight
0.005291oz
Width
0.126inch
Compliance
RoHS
Not Compliant
Datasheet
Vishay T83C225K050EZZL Datasheet
Download the complete datasheet for Vishay T83C225K050EZZL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

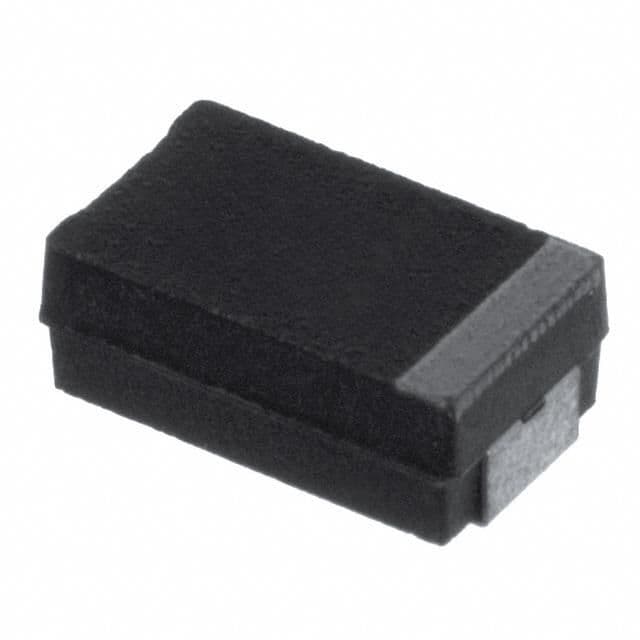

Product Images
