Surface mount thin film chip resistor, 0603 case size, offering 51.1kΩ resistance with a tight 0.1% tolerance. Features a 0.1W power rating, 75V maximum voltage rating, and operates across a wide temperature range of -55°C to 125°C. Designed with moisture resistance, anti-sulfur properties, and automotive AEC-Q200 qualification, this RoHS compliant component is ideal for demanding applications.
Package0603
Resistance51.1kR
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TNPW060351K1BEEA technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin |
| Depth | 0.85mm |
| Features | Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 51.1kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | TNPW e3 |
| Size Code | 0603 |
| Technology | THIN FILM |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 50V |
| Weight | 7.1E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TNPW060351K1BEEA Datasheet
Download the complete datasheet for Vishay TNPW060351K1BEEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

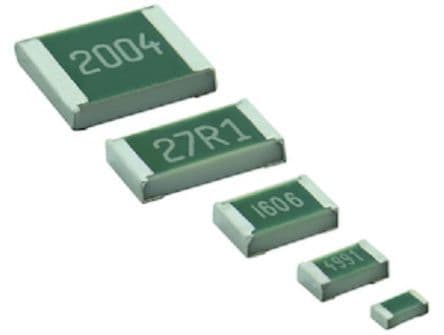

Product Images
