Surface mount thin film chip resistor, 8.06kΩ resistance with 0.1% tolerance. Features 0.1W power dissipation, 75V voltage rating, and operates from -55°C to 155°C. Automotive AEC-Q200 qualified, moisture resistant, and anti-sulfur. Packaged in a 0603 (1608 metric) case with tin plating, supplied on tape and reel.
Package0603
Resistance8.06kR
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TNPW06038K06BEEA technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.85mm
Features
Moisture Resistant, Automotive AEC-Q200, Anti-Sulfur
Height
0.45mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Mount
Surface Mount
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
8.06kR
Resistance Tolerance
0.1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
TNPW
Technology
THIN FILM
Termination
SMD/SMT
Tolerance
0.1%
Voltage Rating
75V
DC Rated Voltage
50V
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Vishay TNPW06038K06BEEA Datasheet
Download the complete datasheet for Vishay TNPW06038K06BEEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

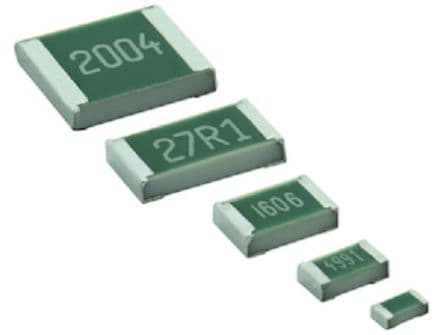

Product Images
