Solid, polarized tantalum capacitor with 1µF capacitance and 35V voltage rating. Features a 1206 (3216 metric) surface mount case code, 10% tolerance, and 3Ω ESR. Operating temperature range from -55°C to 125°C, with a ripple current of 160mA and leakage current of 500nA. RoHS compliant and supplied on tape and reel.
Package1206
Voltage35V
Capacitance1uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Vishay TR3A105K035C3000 technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
4%
ESR (Equivalent Series Resistance)
3R
Features
General Purpose
Height
1.6mm
Lead Pitch
2.54mm
Leakage Current
500nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
160mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, TR3
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
300V
Weight
566.990462mg
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay TR3A105K035C3000 Datasheet
Download the complete datasheet for Vishay TR3A105K035C3000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

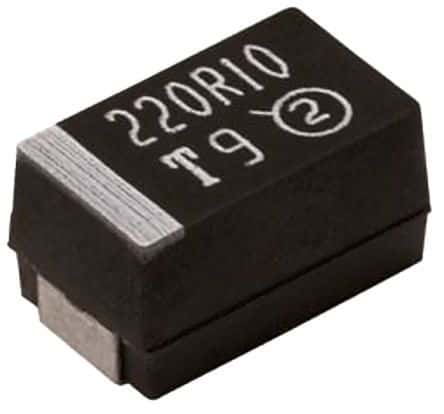

Product Images
