Solid Tantalum Capacitor, 22µF capacitance, 6.3V voltage rating, 10% tolerance. Features 1 Ohm ESR, 1.4µA leakage current, and 270mA ripple current. Operates from -55°C to 125°C. Surface mountable in a 3216 metric (1206 imperial) case with dimensions of 3.2mm x 1.6mm x 1.6mm. Packaged on tape and reel.
Package1206
Capacitance22uF
Voltage Rating6.3V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay TR3A226K6R3C1000 technical specifications.
General
Capacitance
22uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Flat
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
1R
Features
General Purpose
Height
1.8mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
1.4uA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
270mA
RoHS Compliant
Yes
Series
TANTAMOUNT® TR3
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Weight
0.000571oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay TR3A226K6R3C1000 Datasheet
Download the complete datasheet for Vishay TR3A226K6R3C1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

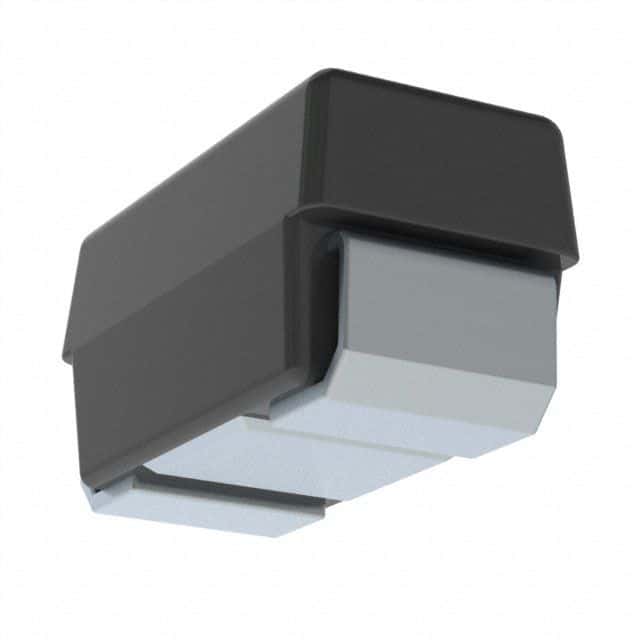

Product Images
