Solid Tantalum Capacitor, 47µF capacitance, 10V DC rated voltage, and 10% tolerance. Features a 6032 metric case size (2312 imperial), 6mm length, 3.2mm width, and 2.5mm height. Offers 350mΩ ESR, 4.7µA leakage current, and 560mA ripple current. Operates from -55°C to 125°C, with a 6% dissipation factor. Surface mountable, lead-free, and RoHS compliant, supplied in tape and reel packaging.
Package2312
Voltage10V
Capacitance47uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay TR3C476K010C0350 technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2312
Case Code (Metric)
6032
Package/Case
2312
Construction
Flat
Depth
3.2mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
350mR
Features
General Purpose
Height
2.5mm
Lead Free
Lead Free
Leakage Current
4.7uA
Length
6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
560mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, TR3
Termination
SMD/SMT
Tolerance
10%
Voltage
10V
Voltage Rating
10V
DC Rated Voltage
10V
Weight
0.005291oz
Width
3.2mm
Compliance
RoHS
Compliant
Datasheet
Vishay TR3C476K010C0350 Datasheet
Download the complete datasheet for Vishay TR3C476K010C0350 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

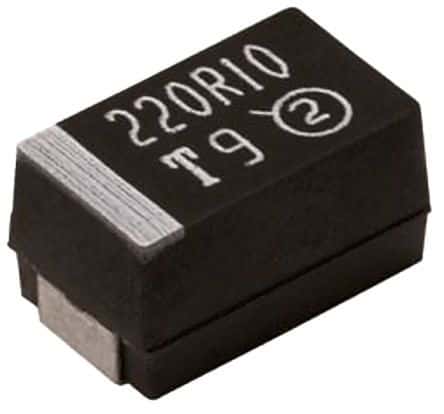

Product Images
