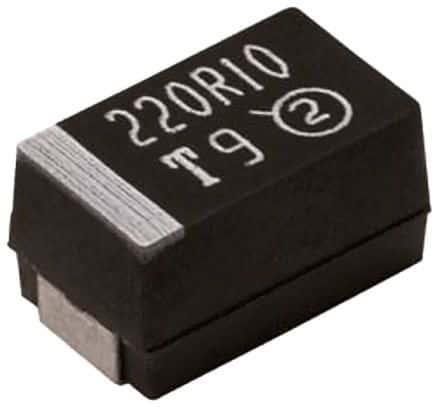

Solid tantalum capacitor with 4.7µF capacitance and 50V DC rating. Features 10% tolerance, 300mΩ ESR, and a maximum operating temperature of 125°C. Surface mountable in a 7343 metric / 2917 imperial case code, measuring 7.3mm x 4.3mm x 4mm. RoHS compliant and lead-free.
Package2917
Voltage50V
Capacitance4.7uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay TR3E475K050C0300 technical specifications.
General
Capacitance
4.7uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
4%
ESR (Equivalent Series Resistance)
300mR
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.17inch
Lead Free
Lead Free
Leakage Current
2.4uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Q Factor
4
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
740mA
RoHS Compliant
Yes
Series
TANTAMOUNT® TR3
Termination
SMD/SMT
Tolerance
10%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.169inch
Compliance
RoHS
Compliant
