Surface mount trimmer resistor featuring cermet technology and a linear taper. This 1-turn variable resistor offers a resistance of 1kΩ with a 20% tolerance. Rated for 0.25W (250mW) power dissipation, it operates across a temperature range of -55°C to 125°C. The component has a J-hook termination and is supplied on tape and reel.
Resistance1kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TS53YJ102MR10 technical specifications.
General
Depth
5.5mm
Height
0.106inch
Lead Free
Lead Free
Length
5mm
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1kR
Resistance Tolerance
20%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
TS53Y
Taper
Linear
Technology
CERMET
Termination
J-Hook
Tolerance
20%
Width
0.197inch
Compliance
RoHS
Compliant
Datasheet
Vishay TS53YJ102MR10 Datasheet
Download the complete datasheet for Vishay TS53YJ102MR10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

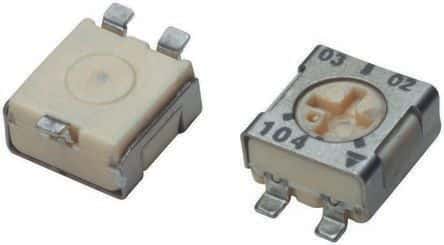

Product Images
