Vishay
TSM4YJ503KB25
RESISTOR, TRIMMER, CERMET, 11 TURN(S), 0.25 W, 50000 ohm, 5 MM, SQUARE, 3 PINS, ROHS COMPLIANT
Resistance50kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay TSM4YJ503KB25 technical specifications.
General
Depth
3.8mm
Height
5.3mm
Length
4.8mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Radiation Hardening
No
Resistance
50kR
RoHS Compliant
Yes
Technology
CERMET
Termination
J-Hook
Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Vishay TSM4YJ503KB25 Datasheet
Download the complete datasheet for Vishay TSM4YJ503KB25 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

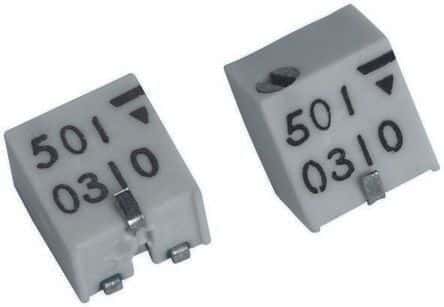

Product Images
