38kHz IR Remote Receiver for through-hole PCB mounting. Features a 45° viewing angle and 45m sensing distance. Operates with a supply voltage range of 2.5V to 5.5V and a maximum power dissipation of 10mW. Forward current is 3mA, with an output current of 5mA. This lead-free component is RoHS compliant and operates within a temperature range of -25°C to 85°C.
Frequency36kHz
Current450uA
MountingThrough Hole, PCB
Power10mW
Quick Jump:
Technical Specifications
Vishay TSOP31238 technical specifications.
General
Forward Current
3mA
Frequency
36kHz
Height
12.5mm
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
10mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole, PCB
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Package Quantity
1000
Packaging
Rail/Tube
Power Dissipation
10mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sensing Distance
45m
Supply Current
450uA
Viewing Angle
45°
Wavelength
950nm
Width
5.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay TSOP31238 Datasheet
Download the complete datasheet for Vishay TSOP31238 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

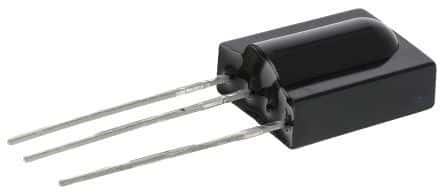

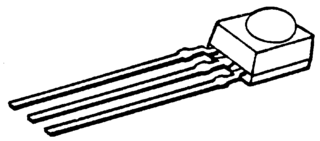

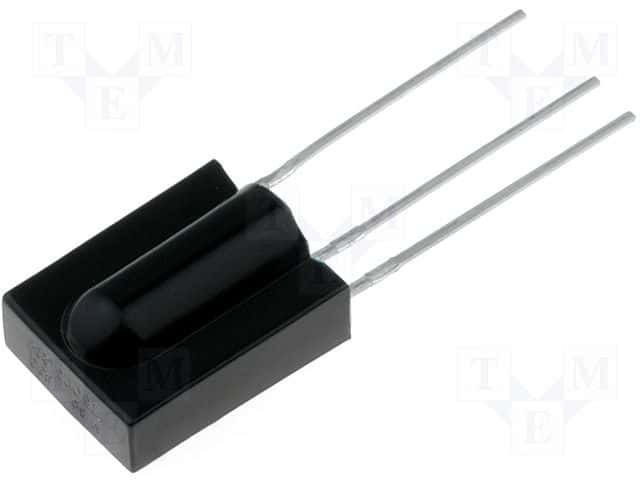

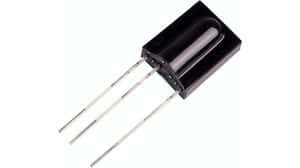

Product Images
