Technical Specifications
Vishay TSOP32236 technical specifications.
General
Package/Case
SIP
Height
6.95mm
Lead Length
23.6mm
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
10mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sensing Distance
45m
Supply Current
450uA
Viewing Angle
45°
Wavelength
950nm
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay TSOP32236 Datasheet
Download the complete datasheet for Vishay TSOP32236 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

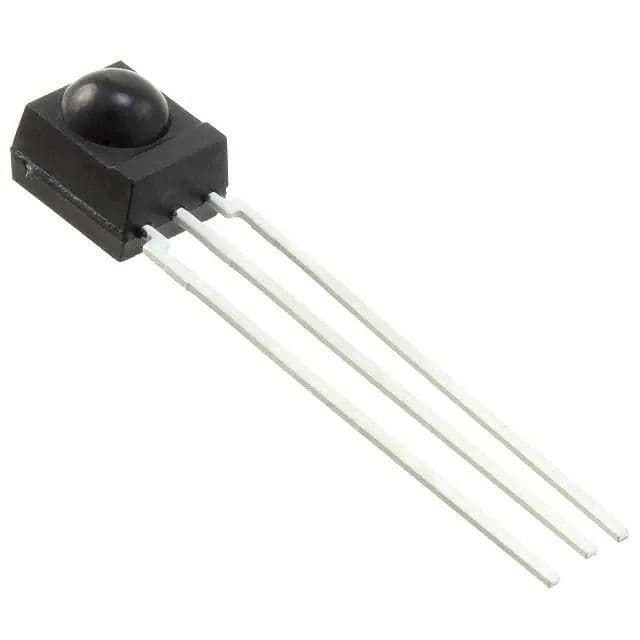

Product Images
