Current450uA
MountingThrough Hole, PCB
Power10mW
Quick Jump:
Technical Specifications
Vishay TSOP34138 technical specifications.
General
Height
6.95mm
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
10mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole, PCB
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
10mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensing Distance
45m
Supply Current
450uA
Viewing Angle
45°
Wavelength
950nm
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay TSOP34138 Datasheet
Download the complete datasheet for Vishay TSOP34138 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

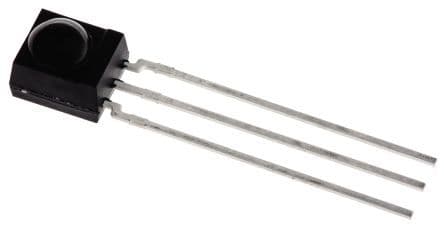

Product Images
