Technical Specifications
Vishay TSOP38538 technical specifications.
General
Height
6.95mm
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Operating Supply Current
350uA
Orientation
Side View
Output Current
5mA
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sensing Distance
45m
Supply Current
350uA
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay TSOP38538 Datasheet
Download the complete datasheet for Vishay TSOP38538 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

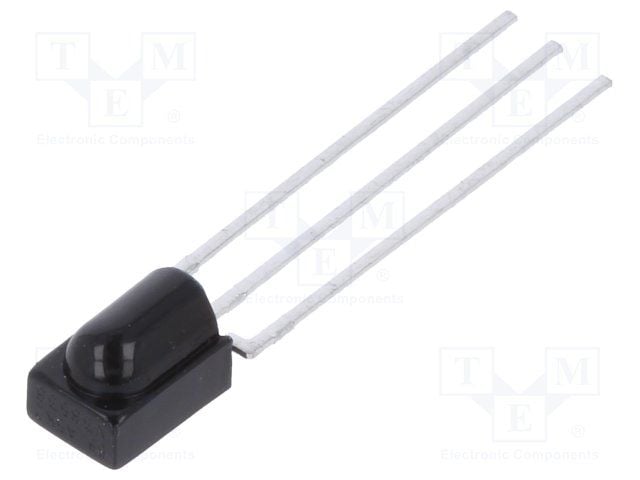

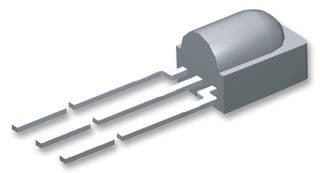

Product Images
