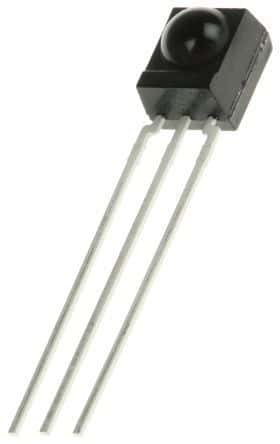

38kHz IR Remote Receiver, 3-pin through-hole component with a 45° viewing angle and 45m sensing distance. Operates from 2.7V to 5.5V supply voltage, drawing a maximum of 950uA supply current. Features a 5mA output current and 10mW power dissipation, with a maximum operating temperature of 85°C. Packaged in a TSOP case with dimensions of 6mm (L) x 5.6mm (W) x 6.95mm (H). RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay TSOP4138 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSOP |
| Height | 6.95mm |
| Lead Free | Lead Free |
| Lead Length | 23.6mm |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Operating Supply Current | 700uA |
| Orientation | Side View |
| Output Current | 5mA |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Dissipation | 10mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 45m |
| Supply Current | 950uA |
| Viewing Angle | 45° |
| DC Rated Voltage | 5.5V |
| Wavelength | 950nm |
| Width | 5.6mm |
| RoHS | Compliant |
