Technical Specifications
Vishay TSSP4P38 technical specifications.
General
Height
6.95mm
Length
6mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole, PCB
Operating Supply Current
700uA
Orientation
Side View
Output Current
5mA
Package Quantity
1
Packaging
Rail/Tube
Power Dissipation
10mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sensing Distance
45m
Supply Current
700uA
Viewing Angle
90°
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay TSSP4P38 Datasheet
Download the complete datasheet for Vishay TSSP4P38 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

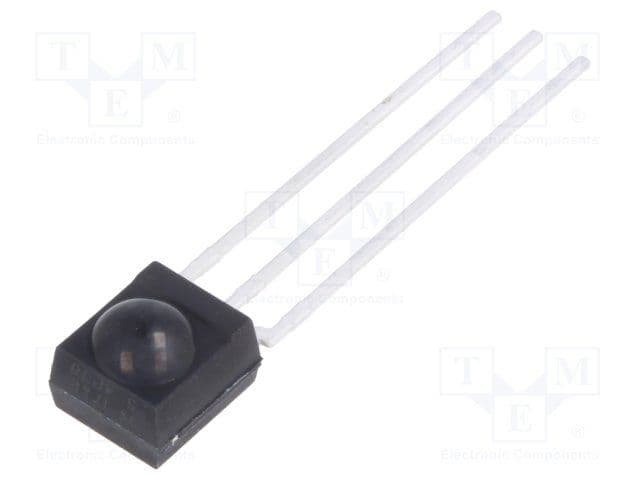

Product Images
