High-speed rectifier diode with 1A average rectified current and 200V reverse voltage. Features a 50ns reverse recovery time and 30A peak non-repetitive surge current. Packaged in a DO-204AL (DO-41) plastic through-hole package, this silicon signal diode operates from -55°C to 150°C and is RoHS compliant.
PackageDO-204AL
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay UF4003-E3/54 technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-204AL |
| Current Rating | 1A |
| Diameter | 2.7mm |
| Diode Type | RECTIFIER |
| Forward Current | 1A |
| Lead Free | Lead Free |
| Length | 0.204inch |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 30A |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| Reverse Voltage | 200V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay UF4003-E3/54 Datasheet
Download the complete datasheet for Vishay UF4003-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

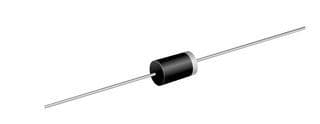

Product Images
